Omron PLC

Get Special Discounts on Omron Products like Omron PLC CP1E, Zen, NX, NJ, CP1L, CP1H. PLC, along with simple-to-utilize Support Software, are available to flexibly handle applications from small to entire production lines. We provide all range of PLC products like Omron PLC CP1E, CP1H, CP1L, CJ1M-CPU1-ETN, CJ1M-CPU2, CJ1M-CPU1, CS1G, CS1H, CS1D, NX102, NX701, NX701-120, NJ, Zen V2, NJ501, NJ501-120 / NJ101-20, NJ501-4, NJ101 Series.

our Products

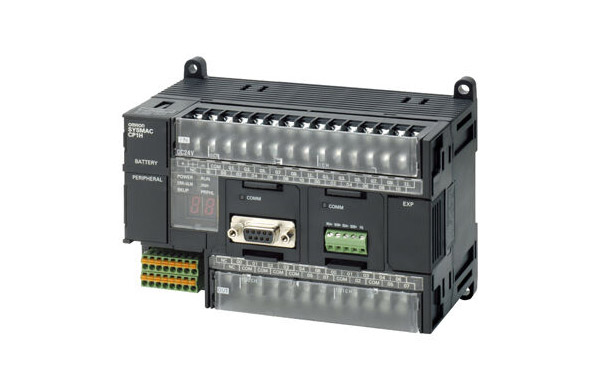

CP1H - Fastest compact machine controller

The CP1H-XA comes with four analogue inputs and two analogue outputs built-in. This makes it suitable for simple loop control, using the PLC’s advanced PID control function with auto-tuning. The CP1H can be expanded with different I/O and supports up to two CJ1W special I/O units. This means that it is open to popular fieldbuses and supports most communication units of the CJ series.

Download

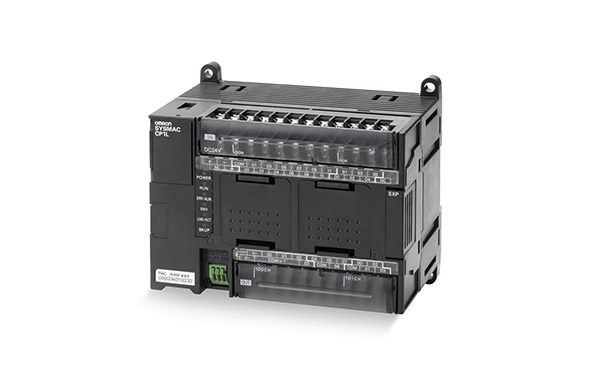

CP1L - Best in class compact machine controller

The CP1L Series provides all the functionality you need to control your machine, including outstanding positioning capability. On top of this some CP1L models have an embedded Ethernet port with socket services functionality to give you flexible connectivity for monitoring, operating, logging and remote access. The CP1L is completed with a range of optional boards for serial communication or analogue I/O and further expansion units in case more I/O is needed. As the CP1L series shares the same architecture as the CP1H, CJ1, and CS1 series, programs are compatible for memory allocations and instructions.

Download

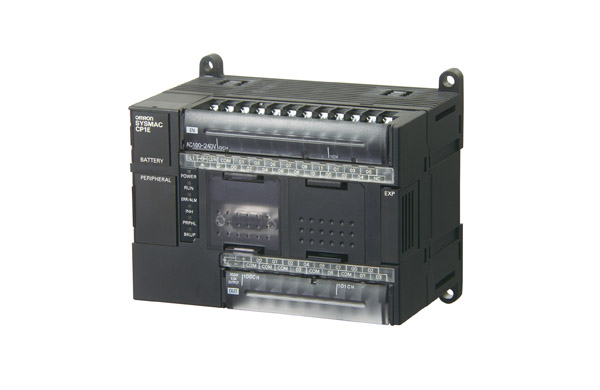

CP1E - The economic machine controller

The “Easy Input Editor” software feature allows faster programming by using an intuitive ladder editor to create an organized application program. The Omron PLC CP1E series comes in two different types: CP1E-E is the most economical, while the CP1E-N has a built-in real-time clock, motion control capabilities, and a serial port to connect an HMI, barcode reader, or other serial device. Several optional units are available to increase the functionality. As the Omron PLC CP1E series shares the same architecture as the CP1L, CP1H, CJ, and CS series, programs are compatible for memory allocations and instructions.

Download

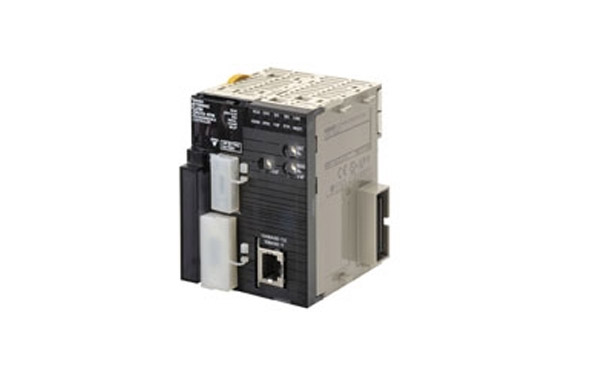

CJ1M-CPU1-ETN - A Micro CJ1M CPU Unit with Built-in Ethernet Newly Released!

Compact 90 × 65 mm (H × D) dimensions are first class in the industry. SYSMAC CJ-series CPU Unit with the functionality of an Ethernet Unit. The CPU functional element has the same functionality as a CJ1M-CPU11/12/13. The enables effective usage of legacy applications. High-capacity Memory Cards up to 128 MB can be installed, and used to backup the program and system settings, or log customer data.

Download

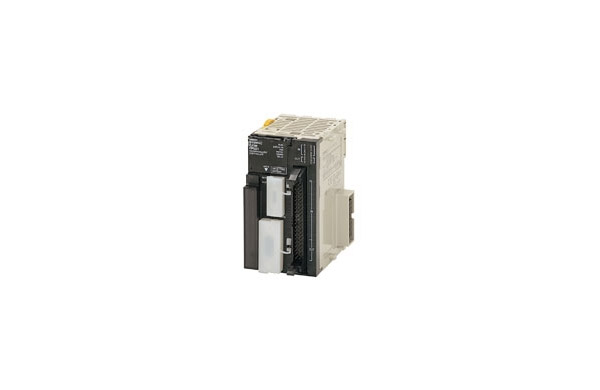

CJ1M-CPU2 - Compact, Applications-oriented Controllers with Built-in Pulse I/O for High Potential

Use special instructions to easily implement various types of positioning, such as positioning with trapezoidal acceleration/deceleration, positioning with different acceleration/deceleration rates, and triangular control. Combine positioning instructions to handle many different applications, such as interrupt feeding and target position changes during positioning.

Download

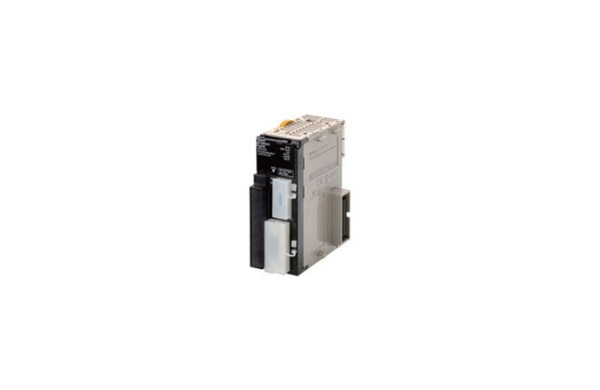

CJ1M-CPU1 - Small! Fast! Flexible! These machine controllers provide flexible control for all kinds of applications.

Compact 90 × 65 mm (H × D) dimensions are first class in the industry. Provides excellent high-speed control performance, with high-speed processing of 0.1 μs for LD instructions and 13.3 μs for floating-point calculations. Other models are available with special functions such as the CJ1M-CPU2[], which provides positioning functions and built-in I/O, and the CJ1G-CPU4[]P. High-capacity Memory Cards up to 128 MB can be installed, and used to backup the program and system settings, or log customer data.

Download

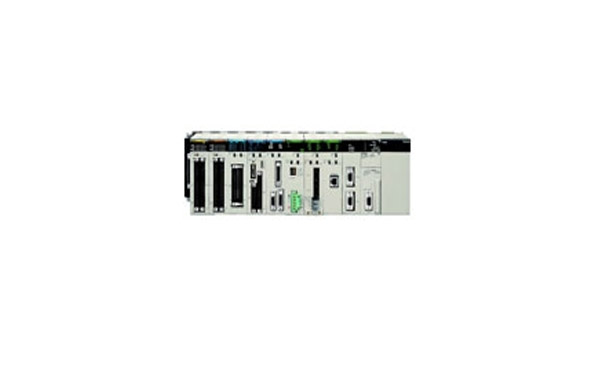

CS1G, CS1H - From Machine Control to Information Management Multiple-application Controllers with a Wide Range of Functions

Windows is a registered trademark of Microsoft Corporation in the United States and other countries. Microsoft product screen shots reprinted with permission from Microsoft Corporarion. Other company names and product names in this document are the trademarks or registered trademarks of their respective companies.

Download

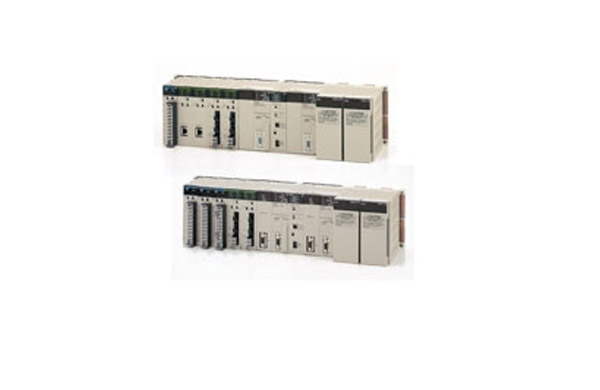

CS1D - Redundant CPU Units, Power Supply Units, Communications Units, and Expansion I/O Cables

Omron offers a diverse range of duplex system configurations to match your system requirements. In addition to dual CPU units and power supply units, you can use dual communications units (Controller Link or Ethernet) and expansion cables. Redundant communications can be created via Ethernet and Controller Link which is widely used in FA applications. A variety of networks are available at the I/O level, including open networks DeviceNet and CompoNet with a proven track record in the CS1 Series.

Download

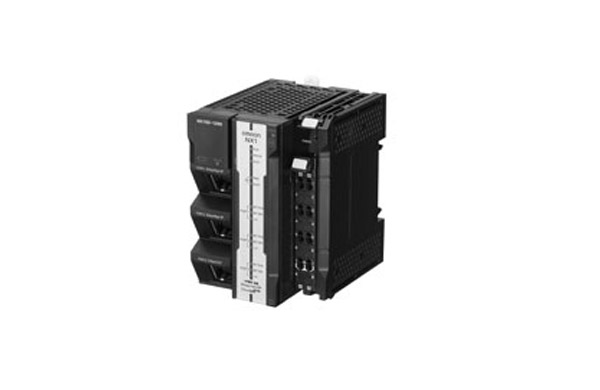

NX102 - Powerful functionality in a compact design

The NX1 can utilize information, take safety measures, and control quality while at the same time improving production efficiency through high-speed, high-precision control. This contributes to continuous improvement in productivity.

Download

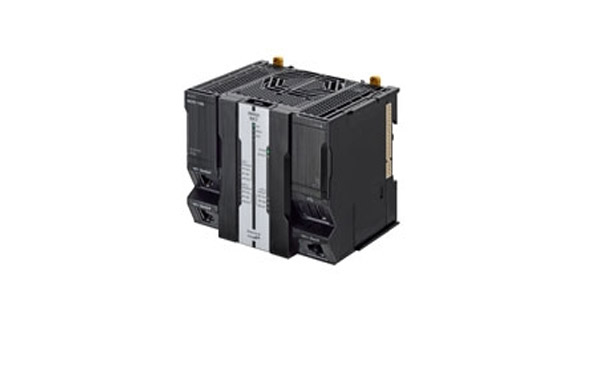

NX701 - Ideal for large-scale, fast, and highly-accurate control with up to 256 axes.

One machine control through one connection and one software is how we define the Sysmac automation platform. The Machine Automation Controller integrates logic, motion, safety, robotics, vision, information, visualization and networking under one software: Sysmac Studio. This one software provides a true Integrated Development Environment (IDE). The machine controller comes standard with built-in EtherCAT and EtherNet/IP. The two networks with one connection purpose is the perfect match between fast real time machine control and data plant management.

Download

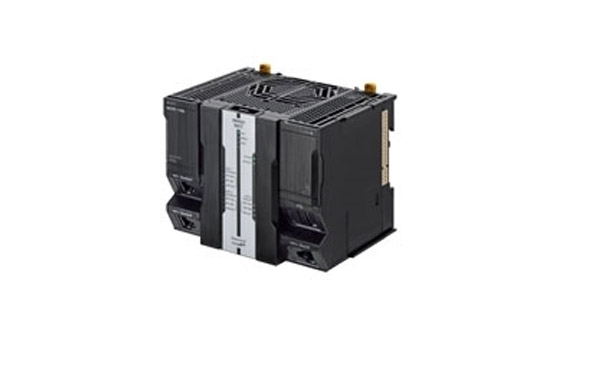

NX701-120 - The Controller can be directly connected to a database. No special Unit, software, nor middleware is required.

Stored Procedure enables complex processing to be carried out on powerful servers. This function performs all data check processing at once after each step, providing reliable traceability while maintaining productivity. No PC is required, which eliminates the need for software updates or virus protection maintenance.

Download

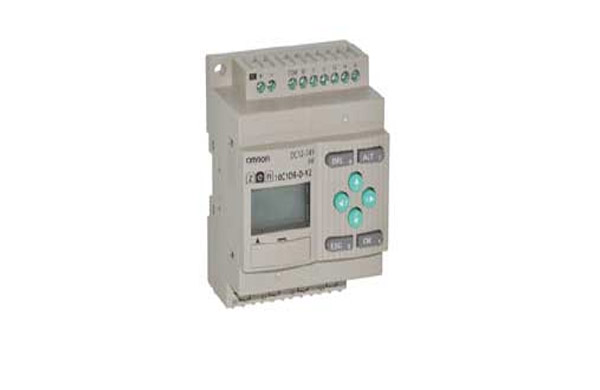

ZEN V2 - Even Broader Applications with Increased Functionality and Higher Precision

Increased functionality in a compact body (70 mm wide × 90 mm high). Easy programming is available using the LCD and operation buttons. This single Unit easily provides relay, timer, counter, and time switch functions. Expansion is easy with Expansion I/O Units, allowing up to 44 I/O points. Economy-type and Communications-type CPU Units have been added to series. Improved Weekly Timers (See note 1.) Increased timing accuracy with a monthly deviation of ±15 s max. Multiple-day operation and pulse output operation have been added. Select from two power supply options: 100 to 240 VAC or 12 to 24 VDC.

Download

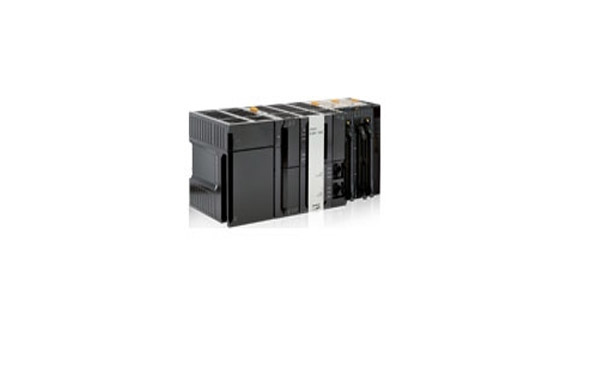

NJ - Motion, Logic, Safety, Vision and HMI in one

Sysmac is an integrated automation platform dedicated to providing complete control and management of your automation plant. At the core of this platform, the Machine Controller series offers synchronous control of all machine devices and advanced functionality such as motion, robotics and database connectivity. This multidisciplinary concept allows you to simplify solution architecture, reduce programming and optimize productivity.

Download

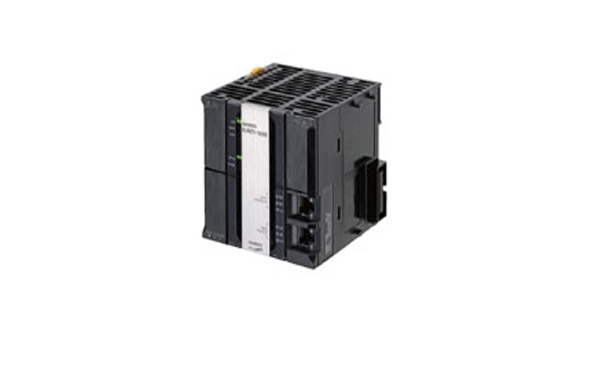

NJ501

Controller that covers functions and high-speed processing required for machine control and safety, reliability and maintainability that are the features of industrial controllers. Ideal for large-scale, fast, and high-accurate control with up to 64 axes. Implemented OPC UA as a standard feature 3075_fe_1. Integration of Logic and Motion in one CPU.Conforms to IEC 61131-3 (JIS B 3503) standard programming and PLCopen function blocks for Motion Control. Programming with variables allows users to create complex programs efficiently. Fast and accurate control by synchronizing all EtherCAT devices, such as vision sensors, servo drives, and field devices, with the PLC and Motion Engines.

Download

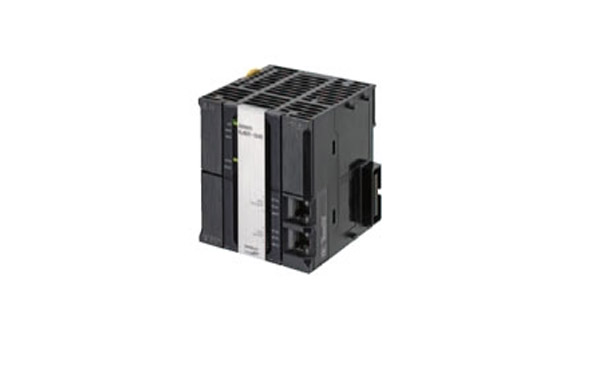

NJ501-120 / NJ101-20

The NJ-series Machine Automation Controller supports the Database Connection function. Machine data can be quickly stored in a database by connecting the Controller directly to the database. Operating status can be displayed in real time using familiar software such as Microsoft® Excel. The CPU Unit can directly access databases without a separate computer. Function Blocks allow PLC engineers to easily use the CPU Unit.

Download

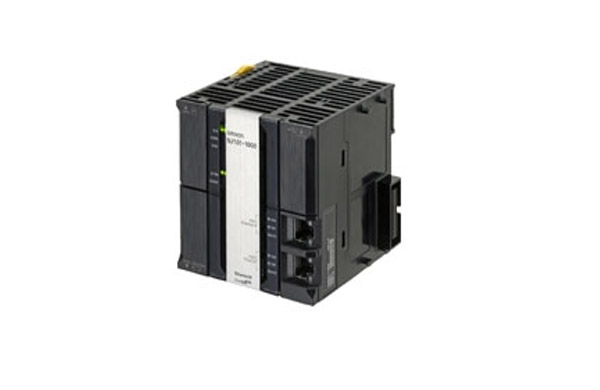

NJ501-4

New controller that covers functions and high-speed processing required for machine control and safety, reliability and maintainability that are the features of industrial controllers provides robot control function. In addition to robot control, general motion control with up to 64 axes can be also performed. Robot control technology adds flexibility to manufacturing processes: reconfigurable machines and quick changeovers. One machine control to ensure high precision synchronization between conveyor and robot. High-speed control, from sensor inputs to robot control. Control of even manipulators synchronized with robot motion via EtherCAT

Download

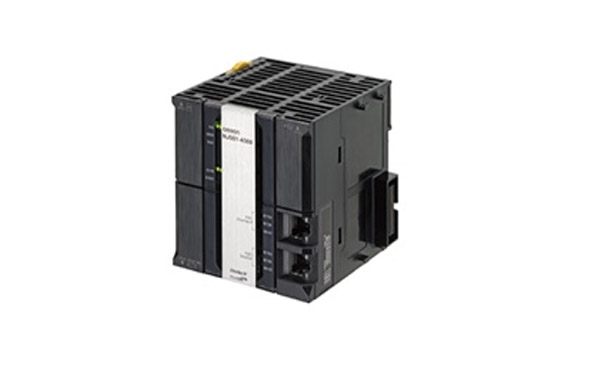

NJ101 - Sysmac solutions for every machine Controllers ideal for simple machines

Integration of Logic and Motion in one CPU. Conforms to IEC 61131-3 (JIS B 3503) standard programming and PLCopen function blocks for Motion Control. Programming with variables allows users to create complex programs efficiently. Fast and accurate control by synchronizing all EtherCAT devices, such as vision sensors, servo drives, and field devices, with the PLC and Motion Engines.

Download
